Pupil + Blink Fatigue/Engagement Timeline in Python (Pupil Labs)
This guide shows how to combine blink and pupil signals into a block-wise session timeline.
By the end, you will generate:
- A figure (
- A block summary table (
- An early-vs-late summary table (
Note. This workflow uses
Download blinks.csv
Download pupil_positions.csv
Download gaze_positions.csv
Download block summary table
By the end, you will generate:

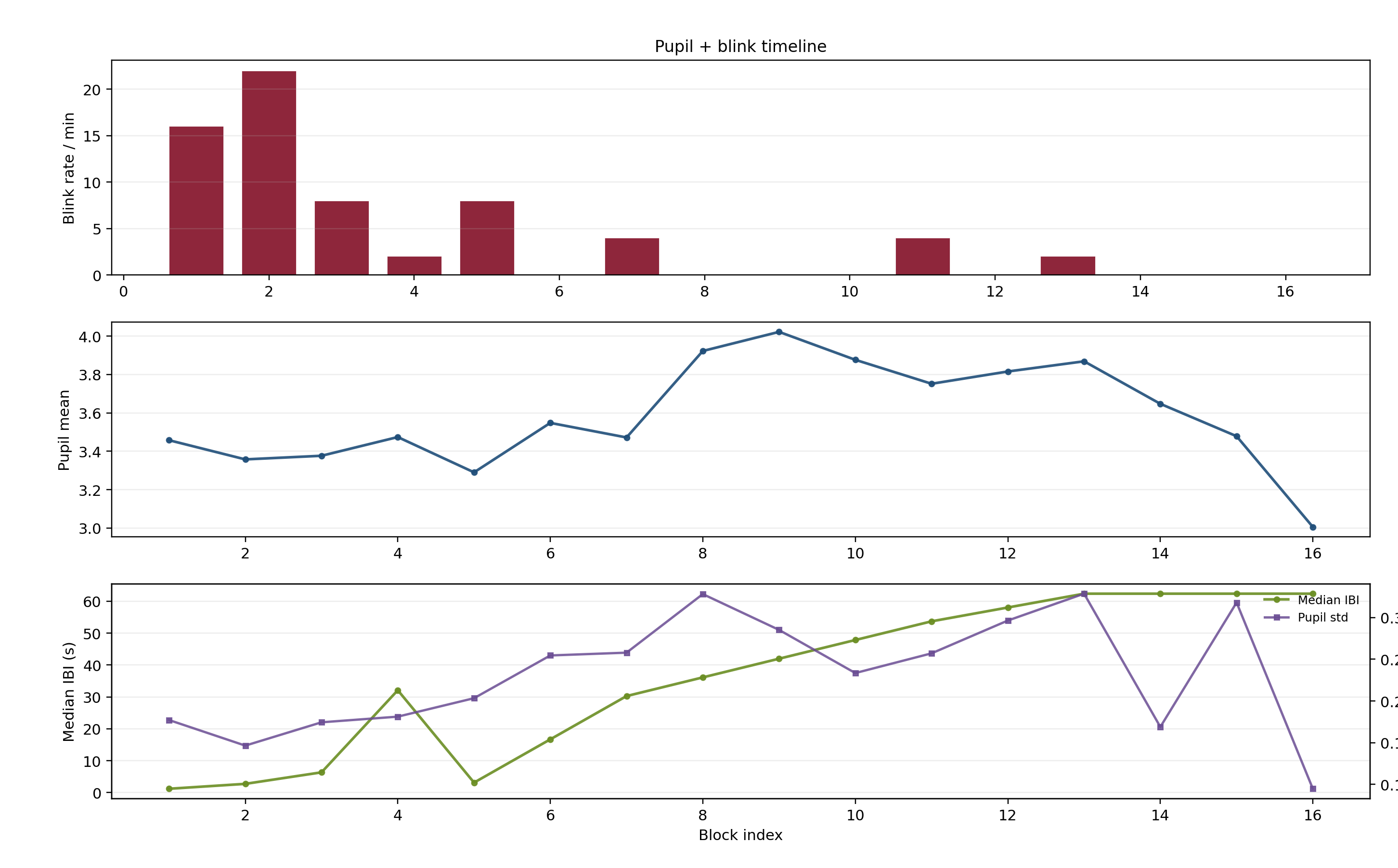

- A figure (
pupil_blink_timeline.png) with blink-rate, pupil mean, and variability over blocks
- A block summary table (
pupil_blink_block_summary.csv)
- An early-vs-late summary table (
pupil_blink_early_vs_late.csv)
Note. This workflow uses
blinks.csv and pupil_positions.csv. Optionally, gaze_positions.csv is used to anchor recording start time.
Download blinks.csv
Download pupil_positions.csv
Download gaze_positions.csv
Download block summary table
Requirements
- Anaconda Python Development Environment
-
-
- optional:
- Python packages:
-
-
-
-
blinks.csv exported from Pupil Labs-
pupil_positions.csv exported from Pupil Labs- optional:
gaze_positions.csv- Python packages:
-
pandas-
numpy-
matplotlib
Setup
1. Install Anaconda if needed.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put
4. Save the script in the same folder (or pass explicit paths with command-line options).
To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first. Create a new file in Spyder and save it in the same directory as your data when you run the examples below.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put
blinks.csv and pupil_positions.csv in your working folder (and optionally gaze_positions.csv).4. Save the script in the same folder (or pass explicit paths with command-line options).
To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first. Create a new file in Spyder and save it in the same directory as your data when you run the examples below.
Step 1 Data
We start with blink and pupil exports from Pupil Labs.
Important variables from
-
- optional:
Important variables from
-
-
- optional:
Optional from
-
Important variables from
blinks.csv: -
start_timestamp, duration- optional:
confidence (filter with --confidence-threshold)Important variables from
pupil_positions.csv:-
pupil_timestamp-
diameter_3d (preferred) or diameter- optional:
confidence, methodOptional from
gaze_positions.csv:-
gaze_timestamp to anchor recording start.
Step 2 Build block-wise timeline metrics
In this step, you:
1. Load and filter blink and pupil data by confidence
2. Smooth pupil signal with a rolling median window
3. Split the session into fixed blocks (default
4. Compute per-block blink rate, median IBI, pupil mean, and pupil variability
5. Compute early-vs-late summary values
The final plot gives a compact timeline view of changes across the session.
1. Load and filter blink and pupil data by confidence
2. Smooth pupil signal with a rolling median window
3. Split the session into fixed blocks (default
30 s)4. Compute per-block blink rate, median IBI, pupil mean, and pupil variability
5. Compute early-vs-late summary values
The final plot gives a compact timeline view of changes across the session.
Step 3 Generate outputs
1. Write
2. Write
3. Write
Outputs are saved to your
pupil_blink_timeline.png2. Write
pupil_blink_block_summary.csv3. Write
pupil_blink_early_vs_late.csvOutputs are saved to your
outputs folder by default.
Step 4 Run the Script
Put
blinks.csv and pupil_positions.csv in the same folder as the script and run the code Step 5 Code
Use the script file below. It computes block-wise blink and pupil metrics, then plots them in a multi-panel timeline.
"""
@author: Fjorda
"""
from __future__ import annotations
import argparse
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
SCRIPT_DIR = Path(__file__).resolve().parent
DEFAULT_BLINKS = SCRIPT_DIR / "blinks.csv"
DEFAULT_PUPIL = SCRIPT_DIR / "pupil_positions.csv"
DEFAULT_GAZE = SCRIPT_DIR / "gaze_positions.csv"
DEFAULT_OUT = SCRIPT_DIR / "outputs"
def parse_args() -> argparse.Namespace:
p = argparse.ArgumentParser(description="Tutorial 9: pupil + blink timeline")
p.add_argument("--blinks", type=Path, default=DEFAULT_BLINKS, help="Path to blinks.csv")
p.add_argument("--pupil", type=Path, default=DEFAULT_PUPIL, help="Path to pupil_positions.csv")
p.add_argument("--gaze", type=Path, default=DEFAULT_GAZE, help="Path to gaze_positions.csv (for start anchor)")
p.add_argument("--out-dir", type=Path, default=DEFAULT_OUT)
p.add_argument("--label", type=str, default="Session")
p.add_argument("--confidence-threshold", type=float, default=0.6)
p.add_argument("--block-sec", type=float, default=30.0, help="Timeline block width in seconds")
p.add_argument("--pupil-smooth-sec", type=float, default=0.4, help="Rolling median window for pupil smoothing")
p.add_argument("--recording-start-ts", type=float, default=None, help="Optional absolute recording start timestamp")
return p.parse_args()
def _resolve_existing(path: Path, name: str) -> Path:
p = path.expanduser().resolve()
if not p.is_file():
raise FileNotFoundError(f"{name} not found: {p}")
return p
def load_blinks(path: Path, conf_thr: float) -> pd.DataFrame:
df = pd.read_csv(path)
need = {"start_timestamp", "duration"}
miss = need - set(df.columns)
if miss:
raise ValueError(f"Missing blink columns: {sorted(miss)}")
if "confidence" in df.columns:
df = df[df["confidence"] >= conf_thr].copy()
df = df.dropna(subset=["start_timestamp", "duration"]).copy()
df["start_timestamp"] = pd.to_numeric(df["start_timestamp"], errors="coerce")
df["duration"] = pd.to_numeric(df["duration"], errors="coerce")
df = df.dropna(subset=["start_timestamp", "duration"]).copy()
if len(df) and float(np.nanmedian(df["duration"].to_numpy(dtype=float))) > 10.0:
df["duration"] = df["duration"] / 1000.0
df = df[df["duration"] > 0].copy()
df = df.sort_values("start_timestamp").reset_index(drop=True)
return df
def load_pupil(path: Path, conf_thr: float) -> pd.DataFrame:
df = pd.read_csv(path)
if "pupil_timestamp" not in df.columns:
raise ValueError("Missing pupil_timestamp column in pupil_positions.csv")
value_col = "diameter_3d" if "diameter_3d" in df.columns else ("diameter" if "diameter" in df.columns else None)
if value_col is None:
raise ValueError("Missing pupil diameter column. Expected diameter_3d or diameter.")
if "confidence" in df.columns:
df = df[df["confidence"] >= conf_thr].copy()
if "method" in df.columns:
rank = df["method"].astype(str).str.contains("pye3d", case=False, na=False).astype(int)
df = df.assign(_rank=rank).sort_values(["pupil_timestamp", "_rank"], ascending=[True, False])
df = df.drop_duplicates(subset=["pupil_timestamp"], keep="first").drop(columns=["_rank"])
else:
df = df.drop_duplicates(subset=["pupil_timestamp"], keep="first")
df["pupil_timestamp"] = pd.to_numeric(df["pupil_timestamp"], errors="coerce")
df[value_col] = pd.to_numeric(df[value_col], errors="coerce")
df = df.dropna(subset=["pupil_timestamp", value_col]).copy()
df = df.sort_values("pupil_timestamp").reset_index(drop=True)
df = df.rename(columns={value_col: "pupil_value"})
return df
def _recording_start(gaze_path: Path, explicit: float | None, blink_df: pd.DataFrame, pupil_df: pd.DataFrame) -> float:
if explicit is not None:
return float(explicit)
if gaze_path.is_file():
g = pd.read_csv(gaze_path)
if "gaze_timestamp" in g.columns:
ts = pd.to_numeric(g["gaze_timestamp"], errors="coerce").dropna()
if len(ts):
return float(ts.min())
return float(min(blink_df["start_timestamp"].min(), pupil_df["pupil_timestamp"].min()))
def smooth_pupil(df: pd.DataFrame, window_sec: float) -> pd.DataFrame:
out = df.copy()
t = out["pupil_timestamp"].to_numpy(dtype=float)
if len(t) < 3:
out["pupil_smooth"] = out["pupil_value"]
return out
dt = float(np.median(np.diff(t)))
n = int(max(3, round(max(window_sec, 0.05) / max(dt, 1e-6))))
if n % 2 == 0:
n += 1
out["pupil_smooth"] = out["pupil_value"].rolling(window=n, center=True, min_periods=1).median()
return out
def build_block_table(blinks: pd.DataFrame, pupil: pd.DataFrame, t0: float, block_sec: float) -> pd.DataFrame:
b = blinks.copy()
p = pupil.copy()
b["t"] = b["start_timestamp"] - t0
p["t"] = p["pupil_timestamp"] - t0
b = b[b["t"] >= 0].copy()
p = p[p["t"] >= 0].copy()
if b.empty or p.empty:
raise ValueError("Not enough aligned data after timestamp anchoring.")
t_end = float(max(b["t"].max(), p["t"].max()))
edges = np.arange(0.0, t_end + block_sec, block_sec, dtype=float)
if len(edges) < 2:
edges = np.array([0.0, max(block_sec, 1.0)], dtype=float)
starts = b["t"].to_numpy(dtype=float)
ibis = np.diff(starts) if len(starts) >= 2 else np.array([], dtype=float)
ibi_times = starts[1:] if len(starts) >= 2 else np.array([], dtype=float)
rows: list[dict[str, float | int]] = []
for i in range(len(edges) - 1):
s, e = float(edges[i]), float(edges[i + 1])
bm = (b["t"] >= s) & (b["t"] < e if i < len(edges) - 2 else b["t"] <= e)
pm = (p["t"] >= s) & (p["t"] < e if i < len(edges) - 2 else p["t"] <= e)
im = (ibi_times >= s) & (ibi_times < e if i < len(edges) - 2 else ibi_times <= e)
n_blinks = int(np.sum(bm))
blink_rate = float(n_blinks / max(e - s, 1e-9) * 60.0)
ibi_med = float(np.median(ibis[im])) if np.any(im) else np.nan
ps = p.loc[pm, "pupil_smooth"].to_numpy(dtype=float)
pupil_mean = float(np.mean(ps)) if len(ps) else np.nan
pupil_std = float(np.std(ps)) if len(ps) else np.nan
rows.append(
{
"block_index": i + 1,
"block_start_s": s,
"block_end_s": e,
"blink_count": n_blinks,
"blink_rate_per_min": blink_rate,
"ibi_median_s": ibi_med,
"pupil_mean": pupil_mean,
"pupil_std": pupil_std,
}
)
return pd.DataFrame(rows)
def early_late_summary(blocks: pd.DataFrame) -> pd.DataFrame:
if len(blocks) < 3:
thirds = max(1, len(blocks) // 2)
else:
thirds = max(1, len(blocks) // 3)
early = blocks.iloc[:thirds]
late = blocks.iloc[-thirds:]
out = pd.DataFrame(
[
{
"segment": "early",
"n_blocks": int(len(early)),
"blink_rate_per_min": float(np.nanmean(early["blink_rate_per_min"])),
"ibi_median_s": float(np.nanmean(early["ibi_median_s"])),
"pupil_mean": float(np.nanmean(early["pupil_mean"])),
"pupil_std": float(np.nanmean(early["pupil_std"])),
},
{
"segment": "late",
"n_blocks": int(len(late)),
"blink_rate_per_min": float(np.nanmean(late["blink_rate_per_min"])),
"ibi_median_s": float(np.nanmean(late["ibi_median_s"])),
"pupil_mean": float(np.nanmean(late["pupil_mean"])),
"pupil_std": float(np.nanmean(late["pupil_std"])),
},
]
)
return out
def plot_timeline(blocks: pd.DataFrame, label: str, out_path: Path) -> None:
x = blocks["block_index"].to_numpy(dtype=float)
fig = plt.figure(figsize=(13.2, 8.2))
gs = fig.add_gridspec(3, 1, hspace=0.22)
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[1, 0])
ax3 = fig.add_subplot(gs[2, 0])
fig.subplots_adjust(left=0.08, right=0.98, bottom=0.08, top=0.93)
ax1.bar(x, blocks["blink_rate_per_min"], color="#7a0018", alpha=0.85, width=0.75, edgecolor="white", linewidth=0.3)
ax1.set_ylabel("Blink rate / min")
title = "Pupil + blink timeline"
if str(label).strip():
title = f"{title} ({label})"
ax1.set_title(title, fontsize=11)
ax1.grid(axis="y", alpha=0.22)
ax2.plot(x, blocks["pupil_mean"], color="#1f4e79", linewidth=1.8, marker="o", markersize=3.5, alpha=0.9)
ax2.set_ylabel("Pupil mean")
ax2.grid(axis="y", alpha=0.22)
ax3.plot(
x,
blocks["ibi_median_s"],
color="#6b8e23",
linewidth=1.8,
marker="o",
markersize=3.5,
alpha=0.9,
label="Median IBI",
)
ax3.set_ylabel("Median IBI (s)")
# Pupil variability has a much smaller numeric range than IBI.
# Plot on a secondary axis so its changes are visible.
ax3b = ax3.twinx()
ax3b.plot(
x,
blocks["pupil_std"],
color="#6a4c93",
linewidth=1.6,
marker="s",
markersize=3.2,
alpha=0.85,
label="Pupil std",
)
ax3b.set_ylabel("Pupil std")
ax3.set_xlabel("Block index")
# IBI is NaN in blocks with <2 blinks, which breaks line segments.
# Interpolate only for visualization so the trend remains readable.
ibi_vis = blocks["ibi_median_s"].interpolate(limit_direction="both")
ax3.lines[0].set_ydata(ibi_vis.to_numpy(dtype=float))
ax3.grid(axis="y", alpha=0.22)
h1, l1 = ax3.get_legend_handles_labels()
h2, l2 = ax3b.get_legend_handles_labels()
ax3.legend(h1 + h2, l1 + l2, loc="upper right", frameon=False, fontsize=8)
fig.savefig(out_path, dpi=220)
plt.close(fig)
def main() -> None:
args = parse_args()
blinks_path = _resolve_existing(args.blinks, "Blinks file")
pupil_path = _resolve_existing(args.pupil, "Pupil file")
gaze_path = args.gaze.expanduser().resolve()
out_dir = args.out_dir.expanduser().resolve()
out_dir.mkdir(parents=True, exist_ok=True)
blinks = load_blinks(blinks_path, conf_thr=args.confidence_threshold)
pupil = load_pupil(pupil_path, conf_thr=args.confidence_threshold)
if blinks.empty:
raise ValueError("No blink events after filtering.")
if pupil.empty:
raise ValueError("No pupil samples after filtering.")
t0 = _recording_start(gaze_path, args.recording_start_ts, blinks, pupil)
pupil = smooth_pupil(pupil, window_sec=args.pupil_smooth_sec)
blocks = build_block_table(blinks, pupil, t0=t0, block_sec=max(args.block_sec, 5.0))
seg = early_late_summary(blocks)
plot_timeline(blocks, label=args.label, out_path=out_dir / "pupil_blink_timeline.png")
blocks.to_csv(out_dir / "pupil_blink_block_summary.csv", index=False)
seg.to_csv(out_dir / "pupil_blink_early_vs_late.csv", index=False)
print(f"Outputs saved to: {out_dir}")
print(f"Blinks used: {blinks_path}")
print(f"Pupil used: {pupil_path}")
print(f"Gaze start anchor: {gaze_path if gaze_path.is_file() else 'not found; fallback used'}")
if __name__ == "__main__":
main()
After you run the script, you will obtain the outputs listed in Step 3. The preview below uses the same asset path as on this site.
